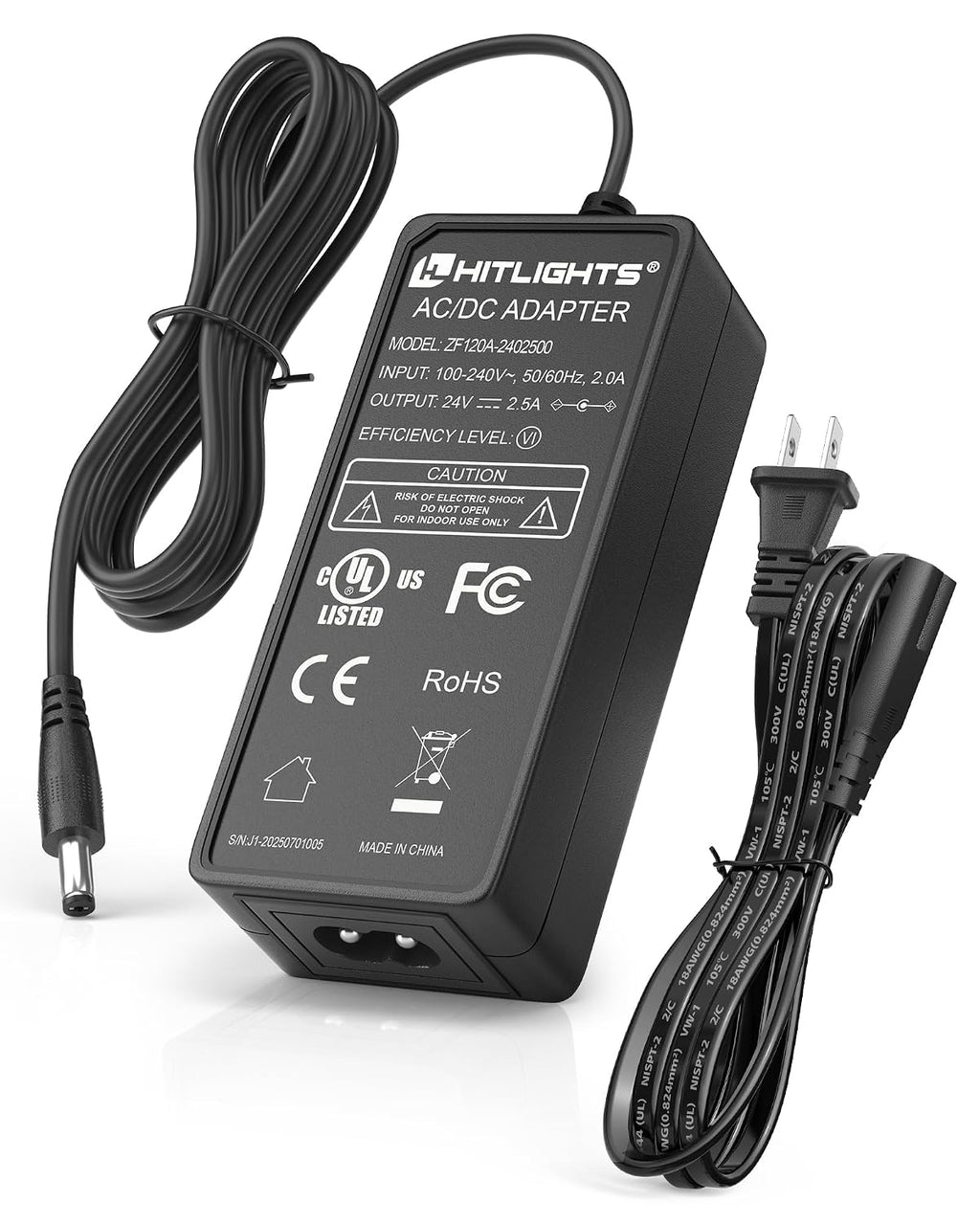

HitLights 24V 2.5A 60W Power Supply, AC/DC LED Adapter, Class 2, Ul-Listed
60.0 / 24.0
$35.09
Sale price
$35.09
Regular price
$0.00
Skip to product information
HitLights 24V 2.5A 60W Power Supply, AC/DC LED Adapter, Class 2, Ul-Listed
$35.09
Sale price
$35.09
Regular price
$0.00
Product description

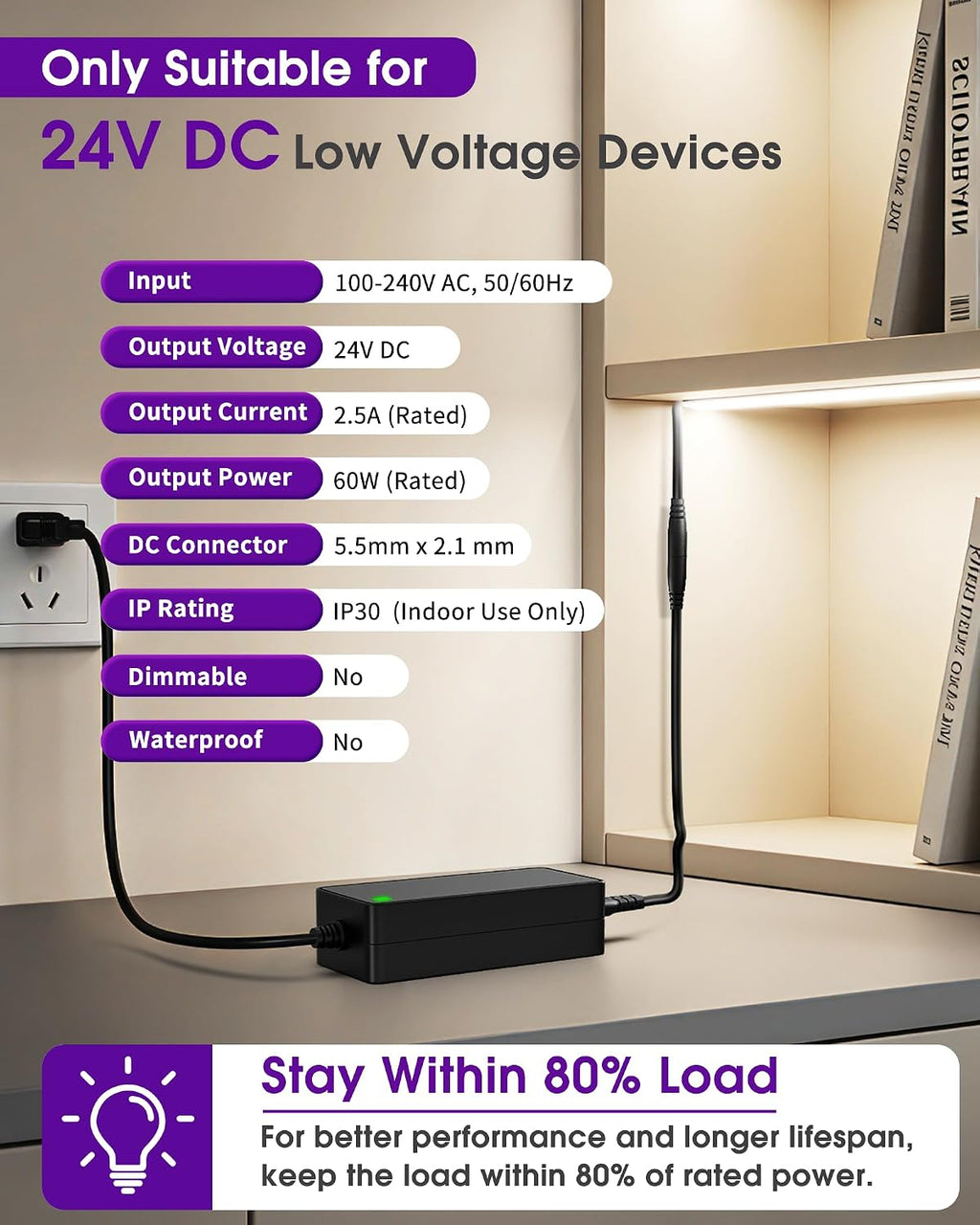

PRODUCT SPECIFICATIONS
| Input Voltage | 100-240V AC, 50/60Hz (Worldwide Input) |
| AC Input Plug Type | US Standard 2-Prong Plug |
| Rated Output Current | 24V DC |
| Rated Output Current | 2.5A |
| Rated Output Power | 60W |
| AC Input Cable Length | 1.5m (4.9 ft) |
| DC Output Cable Length | 1.2m (3.9 ft) |

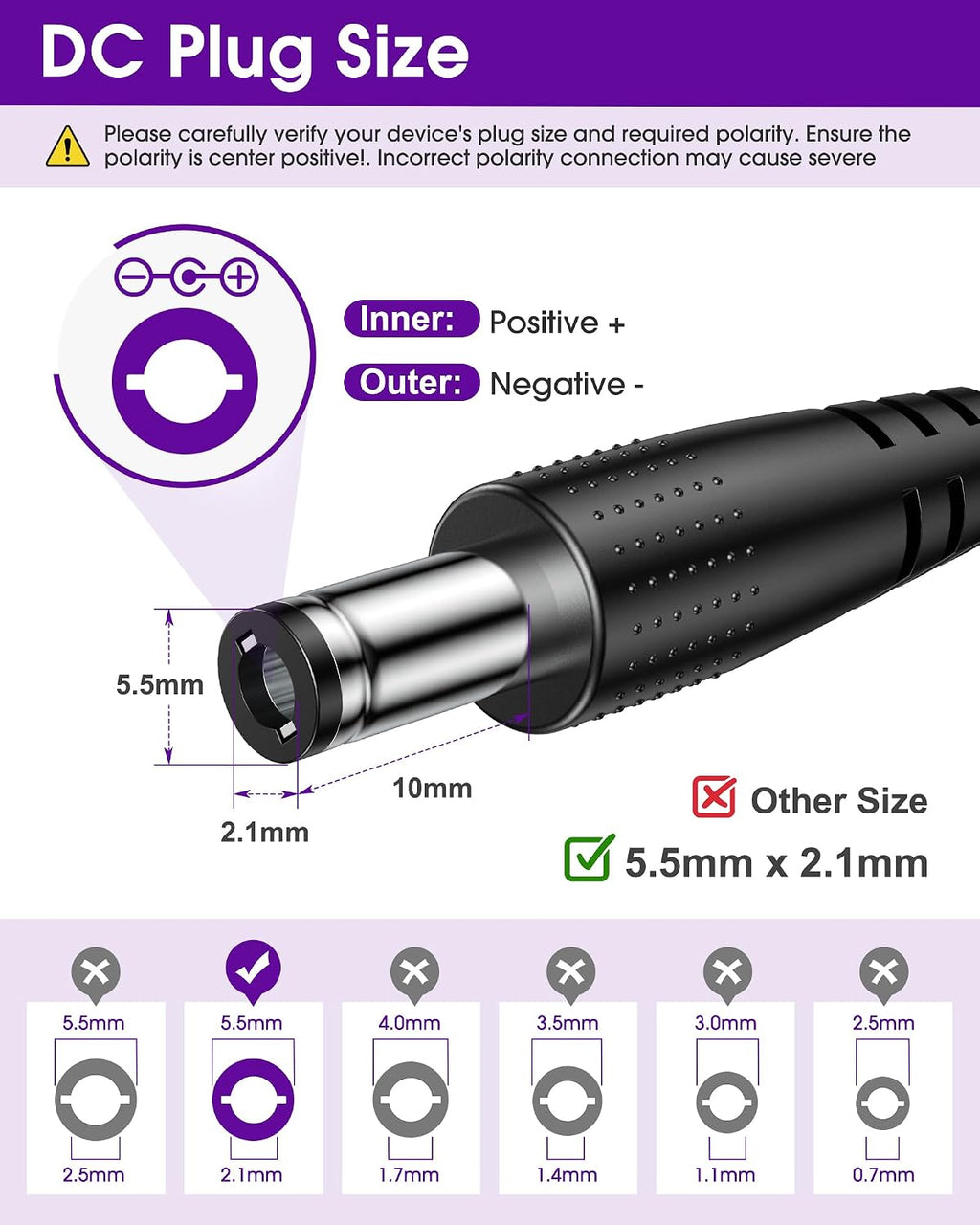

| DC Male Barrel Plug | 5.5mm × 2.1mm (Center Positive) |
| IP Rating | IP30 (Indoor Use Only) |
| Efficiency | 80%-90% |

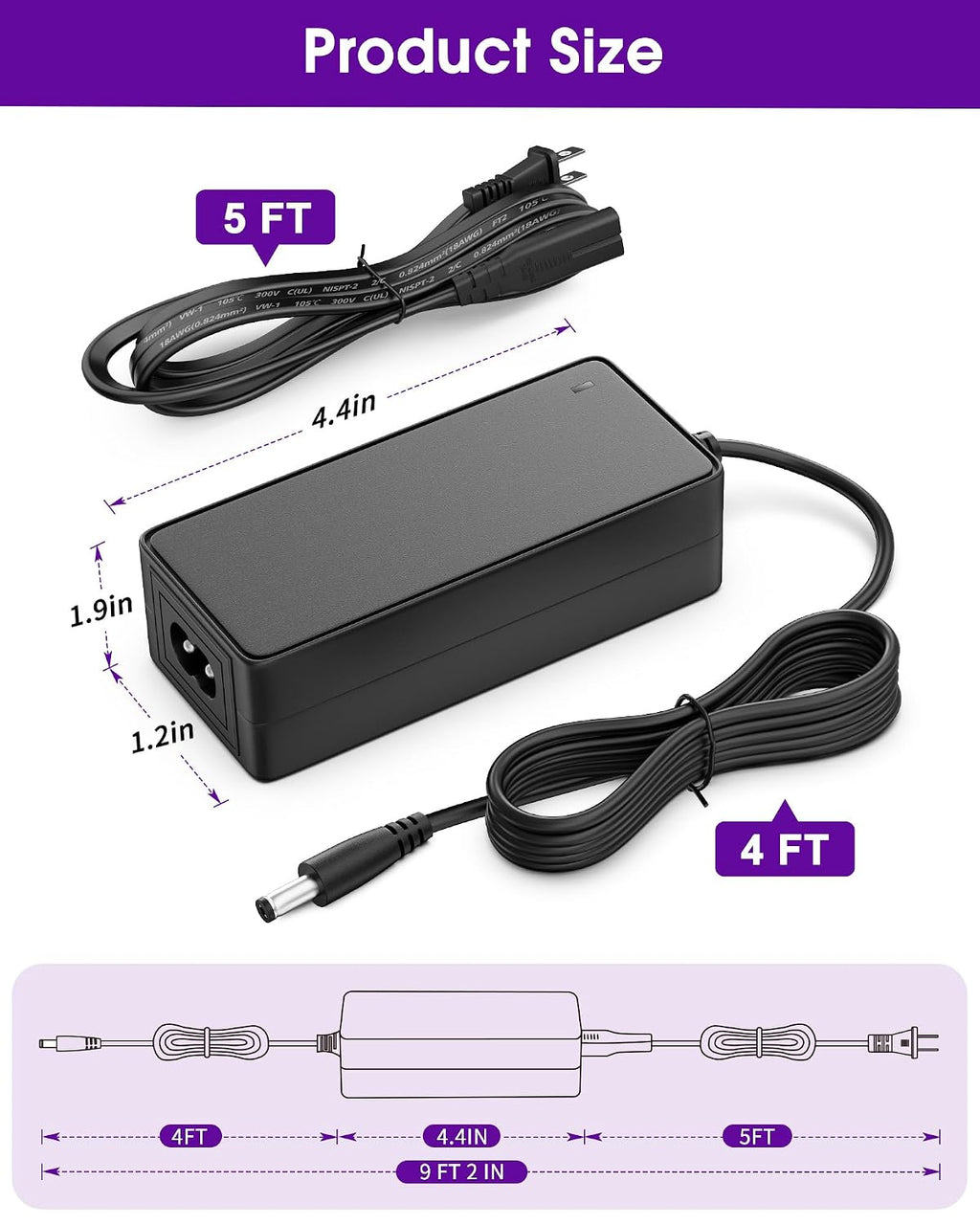

| Dimensions | 4.5" L × 2.0" W × 1.2" H |
| Protection Features | Short Circuit Protection, Over Current Protection, Over Voltage Protection |
| Certifications | cUL, CE, FCC, RoHS |
-
How do I check if this power supply fits my device?
Before purchase, check: 24V DC input, required wattage (20-30% power margin recommended), 5.5mm × 2.1mm center-positive plug, and indoor use only.
-
Can I use this with a 12V device?
No. This power supply is designed for 24V DC devices only. Check your device voltage before purchase.
-
Is it normal for the power adapter to get warm during use?
Yes. It is normal for AC/DC adapters to generate heat during operation, especially under high loads. For better heat dissipation and longer lifespan, keep the load within 80% of the rated output power and ensure proper ventilation around the adapter.
-
How should I place and use the power adapter to prevent overheating?
Place the adapter on a hard, flat, and well-ventilated surface. Keep it away from heat sources and avoid covering it. For better performance and longer lifespan, avoid continuous high-load operation and keep the load within 80% of rated power.
- Please Check Before Placing the Order: 1. Your device operates at 24V and draws no more than 2.5A of current. 2. The DC connector matches the product's port size: 5.5 mm × 2.1 mm (see image for details). 3. This power supply doesn't have charging and dimming functions; For dimming, use an external PWM controller at the DC end
- Adapter Parameters: Input: AC 100V-240V~, 50/60Hz. Output: DC 24V, 2.5A Max, 60W. (We recommend to use 80% (2A) of the full load.) Output adaptor: Standard 5.5 mm x 2.1 mm barrel jack, center positive (+). IP30 Rating, suitable for dry indoor environments

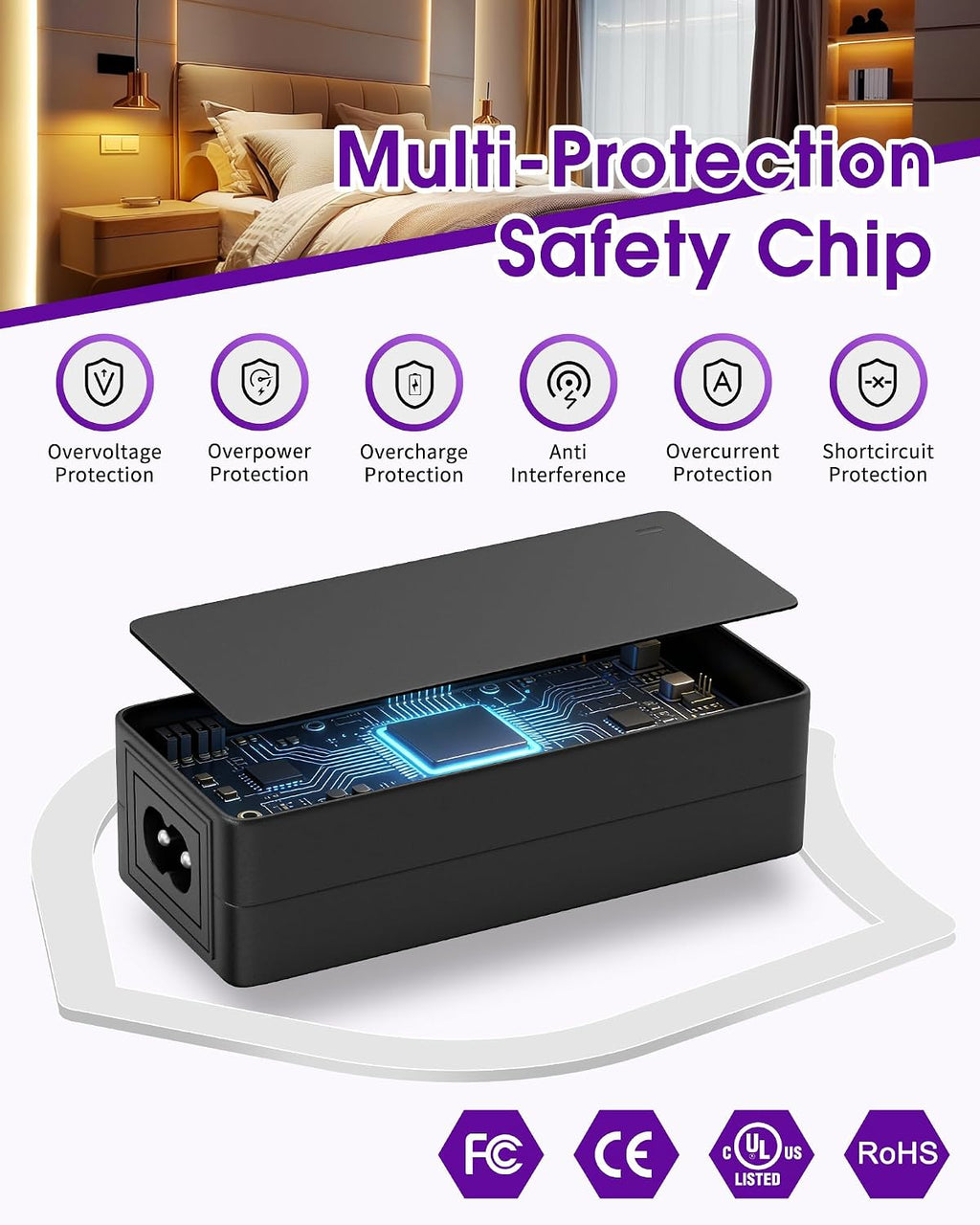

- Safety features: HitLights 24V led power supply offers Short Circuit Protection/Over current protection/Over Voltage Protection and is made with flame-retardant materials for reliable use. Start up time is 1-3 seconds to stabilize the output and extend the life of the led light strip power adapter

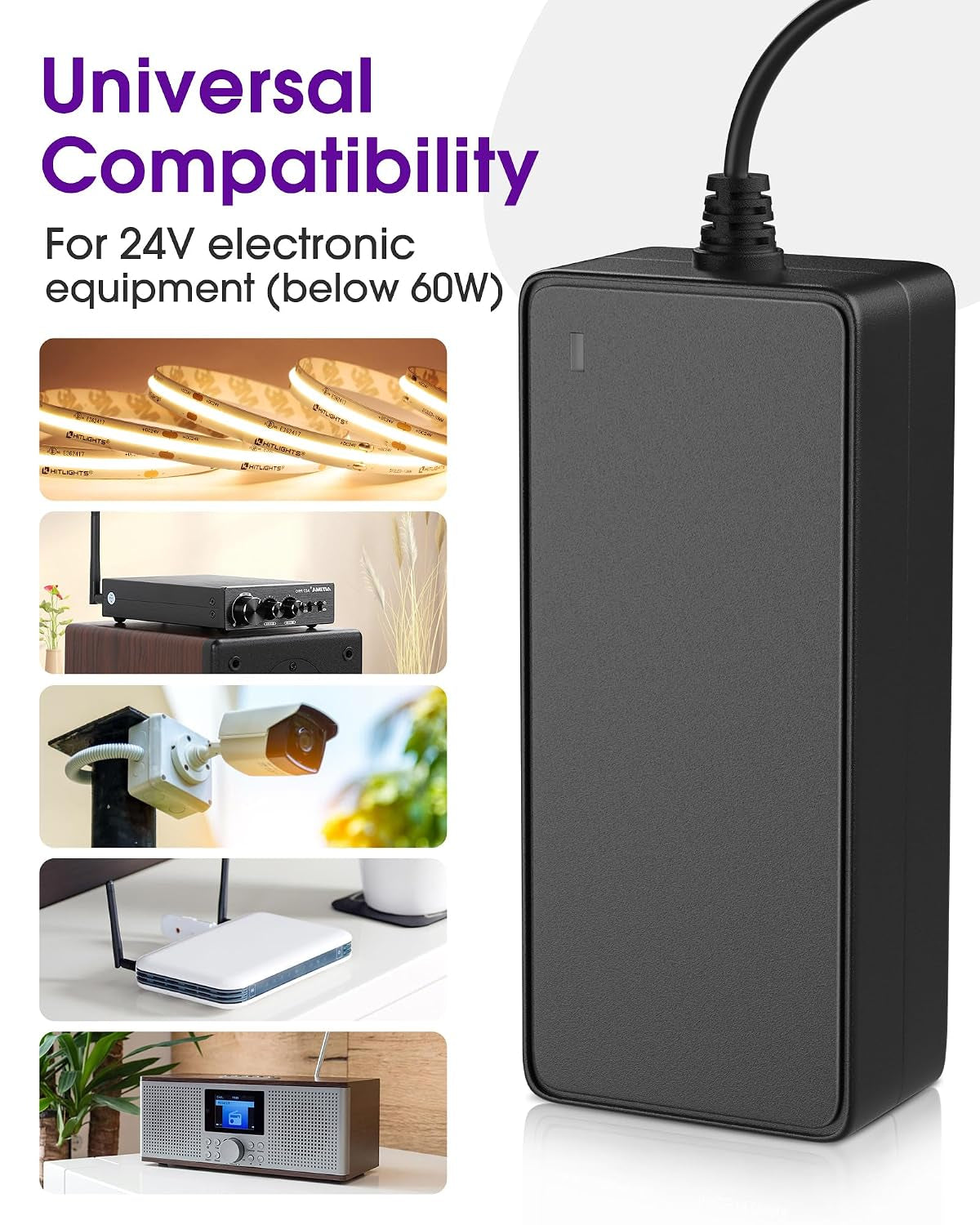

- Extensive Compatibility: This 24V 2.5A power adapter suitable for LED strip lights, CCTV cameras, router, printer, DVR NVR surveillance system, led tape light, keyboard, BT speakers, GPS, webcam, Mini Fan, and more 24V devices
- Easy Plug and Play: This HitLights power supply is easy to install without any accessories or tools, just connect and go. If you have any questions about the power adapter, please do not hesitate to consult us. we're happy to help!
