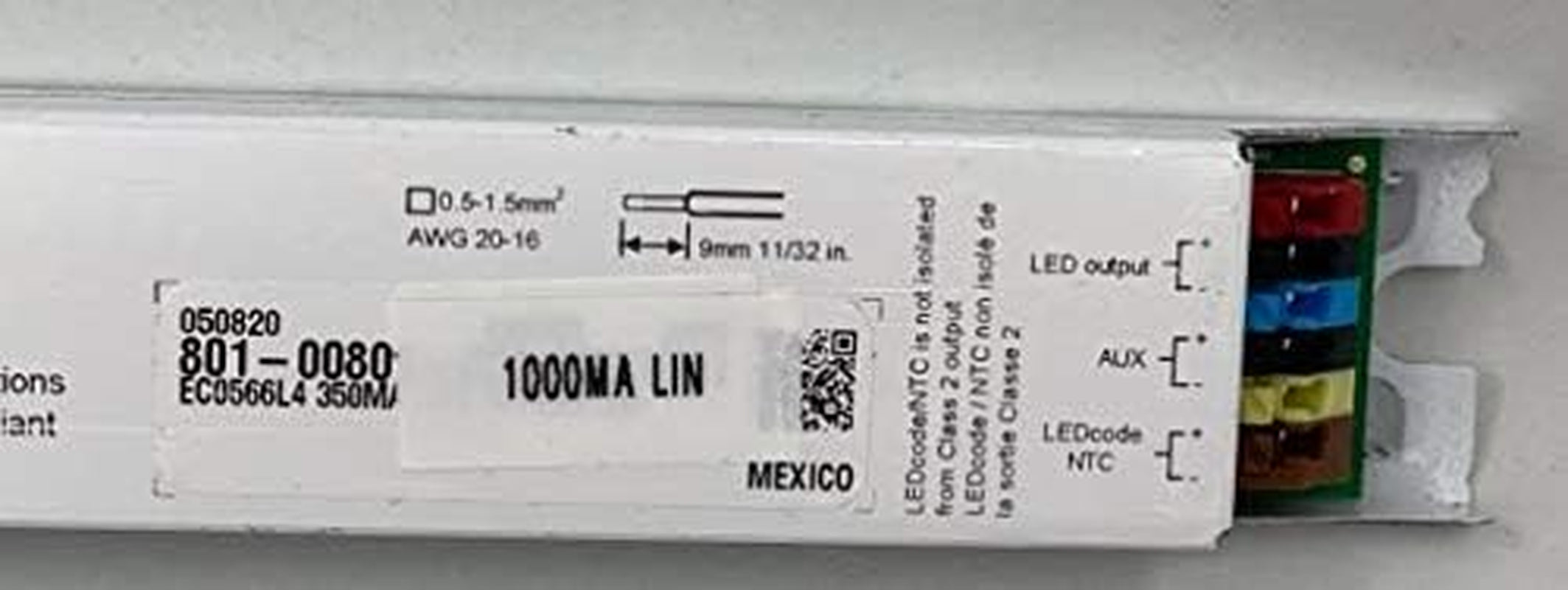

Ecodrive 566/L 1000MA LIN, Ecodrive, 50W, 0-10V + AUX, 1 Control Channel, Constant Current, 1X 55V Output, Side Feed, Long Metal, 236VAN

The eldoLED ECOdrive 566/L is a 50W programmable constant-current LED driver designed for smooth, flicker-free 0-10V dimming down to 1%.

Key Specifications:

• Output Power: 50W maximum

• Input Voltage: 120–277V AC

• Output Current: Programmable from 150mA to 1400mA (adjustable in 1mA increments)

• Voltage Output: 2–55V

• Control Channels: 1 control channel with 0-10V dimming and auxiliary (AUX) power output

• Enclosure: Long linear metal case with side-feed terminal connections

Core Features:

• Adjustable Dimming Curves: Supports programmable dimming responses (such as linear or logarithmic setups).
• LEDcode Technology: Configurable to work with most constant current LED modules while providing connection points for integrated peripheral controls.
• Hybrid HydraDrive: Delivers high-performance, flicker-free dimming.
